AVL Technologies Cobham Explorer, 1.0 Meter Ku-Band Drive Away Antenna System

Beschrijving

AVL Technologies Cobham Explorer, 1.0 Meter Ku-Band Drive Away Antenna System

MAKE: AVL Technologies
MODEL: Cobham Explorer
CONDITION: Used
WARRANTY: One month

For sale in used condition and working condition Cobham Explorer,
1.0 Ku-band drive-away antenna with controller and portable terminal.
Please contact us or make us a reasonable offer.

What you’re buying:
1x Cobham Explorer, Drive away antenna.
1x Cobham TracLRI, Live Remote Interface.
1x ViaSat SurfBeam 2 Pro, Portable terminal.
Including all the connecting cables.

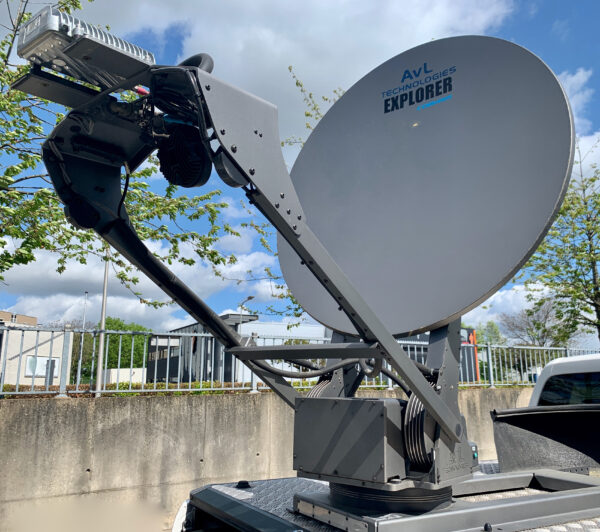

The Cobham EXPLORER is a 1.0m Ku-band drive-away antenna. This auto-deploy system allows personnel
with minimal satellite experience to easily configure and operate this terminal enabling the user
to access any broadband application over satellite.

System Features:
– Rugged, Reliable 1.0m Ku-band Drive-Away Antenna
– Solid Resin Fiber Composite Reflector: High EIRP, High-Performance
– Mechanical Drive systems including Zero-Backlash Az/El Cable Drive,
and Precision Polarization Drive
– WR-75 Flex WaveGuide to BUC interface
– Inclined orbit satellite tracking
– Manual override capability for emergency use

Specifications:
Reflector
– Size 1.0m Resin Fiber Composite
– Optics Offset, Prime Focus, 0.8 F/D
– Mount Geometry 3-Axis, Elevation over Azimuth
– Polarization Motorized Rotation of Feed
Weights & Measures
– Approx. Weight 50.3 kg (111 lbs) without BUC / LNB
– Approx. Length 157.4 cm (62”)
– Stowed Height 38.1 cm
– Deployed Height 161.1 cm
Antenna Characteristics Ku Linear
– Frequency (GHz) Receive – 10.95 -12.75 Transmit 13.75 -14.5
– Antenna Gain (dBi ± 0.2) Receive – 39.9 Transmit 41.4
– VSWR Receive 1.3:1 Transmit 1.3:1
– Cross Pol Isolation (dB) On-Axis Receive 30 Transmit 35
– Cross Pol Isolation (dB) Off-Axis Receive 28 Transmit 30
– Feed Port Isolation – Tx to Rx (dB) Receive 35 Transmit 80 w/filter
Beamwidth (degrees)
– at -3dB Receive 1.8 Transmit 1.5
– at -10dB Receive 3.2 Transmit 2.8
Antenna Noise Temperature (°K) at 20° Elevation
– 55°
G/T – Comm @ 30° EL Midband (dB/°K)
– 19.5
Radiation Pattern Compliance
– FCC §25.209, ITU-R S.580
Polarization
– Linear Orthogonal Std
Optional Co-pol
– Standard BUC Options 4W, 8W, 16W
Environmental
– Wind Speed – Operational 72 km/h (45 mph)
Survival (deployed) (stowed)
– 80.5 km/h (50 mph)
– 161 km/h (100 mph)
Temperature – Operational
-30° to +51°C (-22° to 125°F)
– Survival -40° to +60°C (-40° to 140°F)
Rain
– <100 mm/hr
Humidit
– 0 to 100% (condensing)
Electrical
– RF Rx and Tx: Type F (75-ohm) connectors
– Interfacility Link 9.14m (30 ft) Dual RG6 Coax, 1 Control Cable
– Motors 24VDC Servo w/ Optical Encoder, Constant Torque
– Controller (1RU)
Power Supply
– 90 – 264 VAC, 50/60Hz Single Phase
– 300W standard; 1000W option available
Power Consumption
– Motors Active – 250 Watts
– Motors Idle – 30 Watts
– BUC Mounting Feed Boom (maximum weight 7.3 kg / 16 lbs.)
– Waveguide 90° WR75 Waveguide Rotary Joint @ Feed TX Input
– Emergency Drive Handcrank on Az & El; Knob on Po
